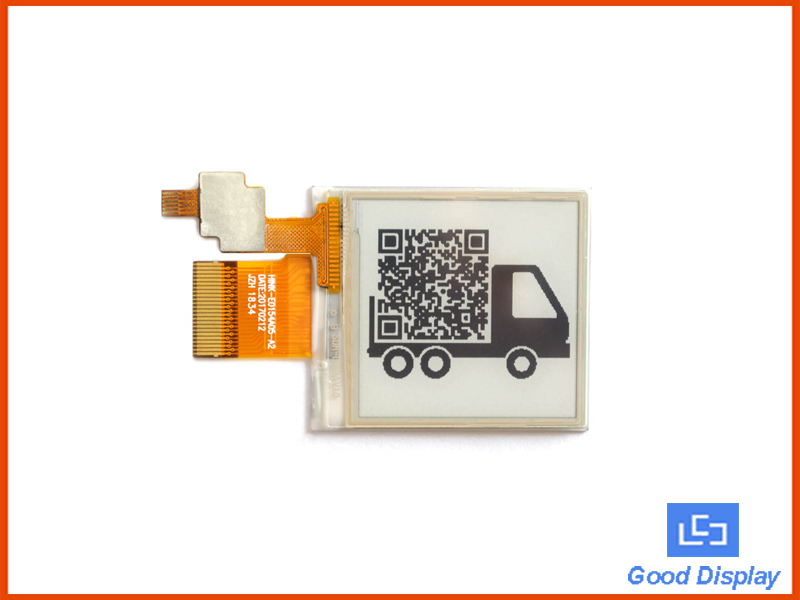

This is a 1.54 inch E ink E paper display with capacitive touch screen, 200*200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH0154D67-T is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, IED and other related products.



Support partial refresh, fast update and no flicker update.

With touch panel

200x200 resolution

Come with helpful development resources and manual (STM32 platform )

Development platform available STM32 / Arduino / Raspberry Pi / ESP8266











Part Number	GDEH0154D67-T
Type	Dot Matrix
Resolution	200*200
Outline Size(mm)	31.8*.37.32
Actve Size(mm)	27*27
Operating Temp.	0°C~50°C
Storage Temp.	-25°C~60°C
Connector	24 Pin FPC
Color	Black,White
Time of refresh(s)	2
Time of partial refresh(ms)	0.26







Part Number	Color	Full refresh Time	Resolution	Feature	T/P and Front-light(optional)
GDEH0154D67	BW	2S	200x200	Partial refresh,High Resolution	√
GDEW0154Z04	BWR	8S	200x200	Three colors	√
GDEW0154Z17	BWR	16S	152x152	Three colors	√
GDEW0154C39	BWY	26S	152x152	Three colors	√
GDEW0154I9F	BW	3S	152x152	Flexible	x
GDEM0154E97LT	BW	3S	152x152	Low temperature	√
GDEW0154T8	BW	3S	152x152	Partial refresh,4 Grayscale	√
GDEW0154M09	BW	0.82S	200x200	Fast speed,High Resolution	√

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	GDEH0154D67 Specification	4.0	English	2019-06-12	2.2MB
	IC Driver	1.0	English	2019-07-11	1.78MB
	Connector Spec.	1.0	English	2017-08-11	1.77MB
	Picture Production and Bitmap Convert	1.0	English	2020-01-21	462.67KB





Download for The Matched Touch Screen

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	IC Datasheet of The Touch Screen	1.0	English	2020-04-24	1.12MB
	IC Sample Code of The Touch Screen	1.0	English	2020-04-24	441.15KB









 STM32 Development Board



File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	1.0	English	2018-07-12	673.62KB
	DESPI-C02-SCH	1.0	English	2018-07-12	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	GDEH0154D67 STM32 Code	1.0	English	2019-10-22	2.32MB
	Partial Refresh Code	1.0	English	2019-10-22	2.75MB
	Readme(SPI interface Partial refresh considerations)	1.0	English	2019-11-19	0.84KB



Arduino Development Board



File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DEArduino Specification	1.0	English	2018-11-28	673.62KB
	DESPI-C02-SCH	1.0	English	2018-11-28	701.28KB
	DEArduino UNO for EPD_SCH	1.0	English	2018-11-28	462.58KB
	GDEH0154D67 Arduino Code	1.0	English	2020-02-14	14.59KB



Rasberry Pi Development Board



File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	3.0	English	2019-09-12	673.62KB
	DESPI-C03-SCH	1.0	English	2019-09-27	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	GDEH0154D67 Rasberry Pi	1.0	English	2019-10-25	27.08MB



ESP8266 Development Board



File Type	Description (Downloadable)	Version	Language	Update Date	Size
	ESP8266(C02) Specification	1.0	English	2020-04-02	939.11KB
	ESP8266(C03)Specification	1.0	English	2020-04-02	1.04MB
	ESP8266 for EPD-SCH	1.0	English	2020-01-07	72.68KB
	DESPI-C02-SCH	1.0	English	2018-07-12	72.68KB
