Your present location:Home >> T/P Front-light >> 6 inch e-paper display 600X800 E-paper with touch screen and front light GDE060BAFL-T
  • Product Name: 6 inch e-paper display 600X800 E-paper with touch screen and front light GDE060BAFL-T
  • Code: 06005
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 68g
  • Views : 4085

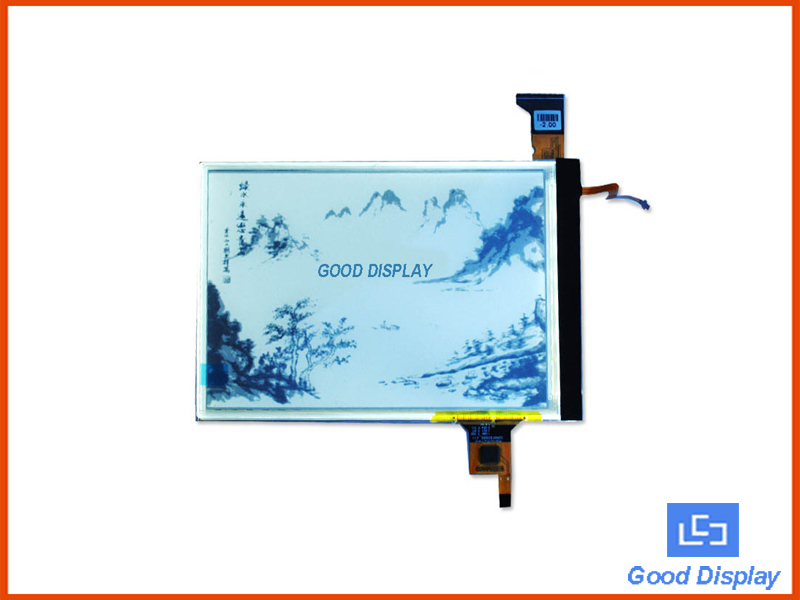

The display is an Active Electrophore Display with the Front light Module and Touch Panel.
The module is a TFT-array driving Electrophore display, with integrated circuits including source and gate drivers. The resolution of the module is 600*800(SVGA), and the active area is 6 inch diagonal.







· With touchscreen and frontlight
· Parallel interface
· 600x800 resoluiton
· 16 Grayscale
· Support partial refresh
· STM32 development resources and manual







Part Number

GDE060BAFL-T

Type

Dot Matrix

Resolution

800*600

Outline Size(mm)

101.8*138.4*2.4

Pixel Pitch(mm)

0.151*0.153

Operating Temp.

0°C~50°C

Storage Temp.

-20°C~70°C

Contrast Ratio

above 8:1

Max Grayscale

16

Power consumption of the e-paper only(mW) 600
Power consumption of the front-light(mW) 230
Power consumption of the touch screen(mW) 36.3
Time of refresh(s) 1
Time of partial refresh(s) 1








Part Number

Full refresh Time

Resolution

Feature

GDE060B3

1S

800x600

         Parallel

GDE060BA

1S

800x600

Parallel

GDE060F3

1S

1024x758

Parallel/High Resolution

GDE060BAFL

1S

800x600

Parallel/Frontlight

GDE060BA-T

1S

800x600

Parallel/Touch screen

GDE060BAFL-T

1S

800x600

Parallel/Touch/Frontlight








Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDE060BAFL-T Spec.

1.0

English

2019-12-16

473.58KB

IC Driver 1.0 English 2017-08-28 1001.95KB
Connector Spec. 1.0 English 2017-08-11 483.13B
Sample Code 1.0 English 2019-02-14 9.16MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 460.9KB










Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                   1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                   1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB
